The Laboratory Roll-to-Roll Coater platform accommodates various oven systems designed for the efficient drying and curing of processed thin films. The oven systems are known for their compactness and user-friendly features, allowing for seamless addition, removal, or replacement in under a minute. Simply affix the preferred drying or curing system relevant to your experiment or pilot run.
Our diverse range of oven systems includes options for hot-air, inert gas, UV-curing, and infrared (IR) curing. Additionally, we offer versatile combo ovens, which combine features such as Hot-air - inert gas // IR.
To ensure convenience, all our oven systems are equipped with an 80 mm exhaust port for effortless connection to point ventilation and boast complete thermal isolation for optimal performance.
All Oven Systems
Hot-Air - Inert Gas Oven
Infrared Oven
UV-LED Oven

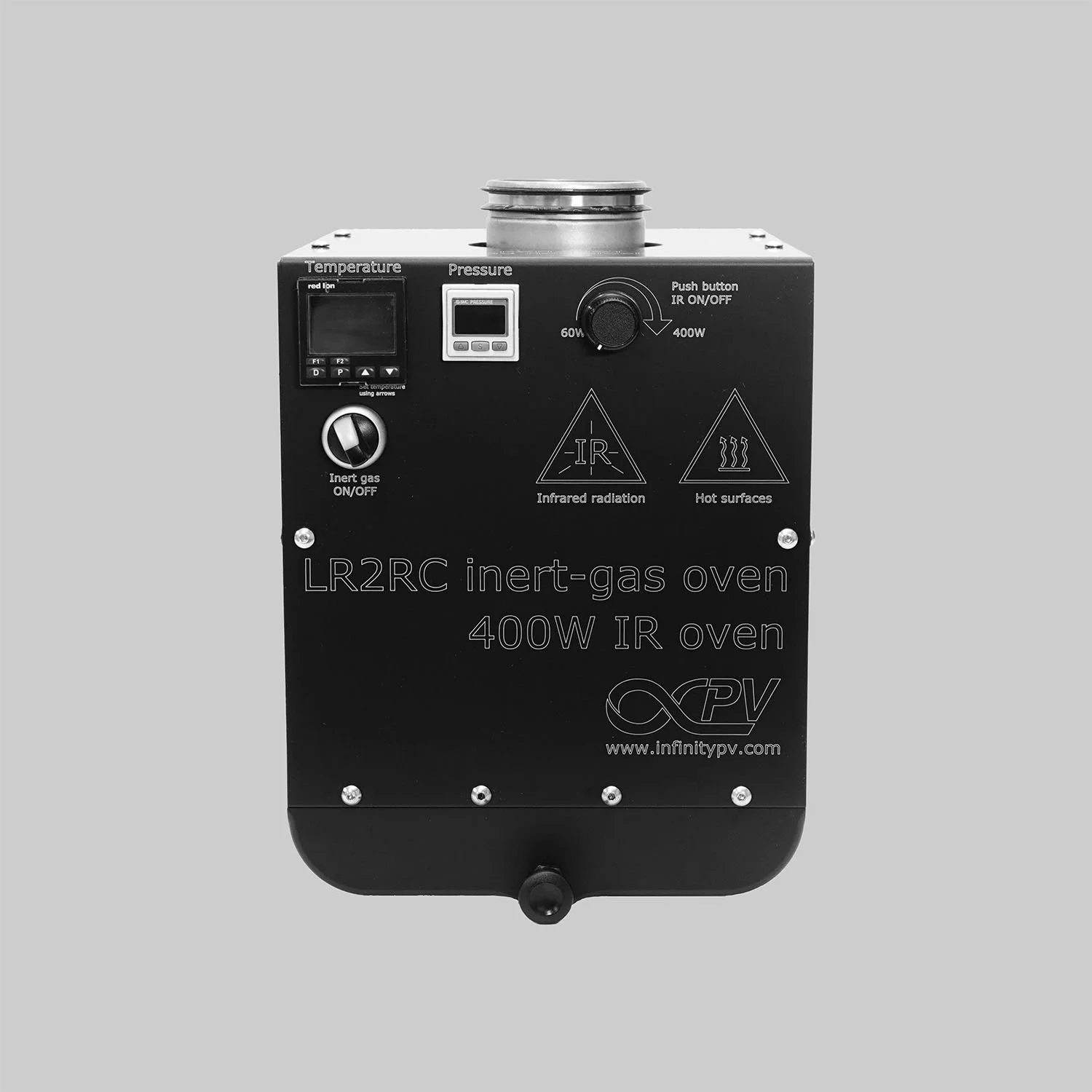

Combo Oven: Hot-Air - Inert Gas / IRs
Double Inert Gas Oven

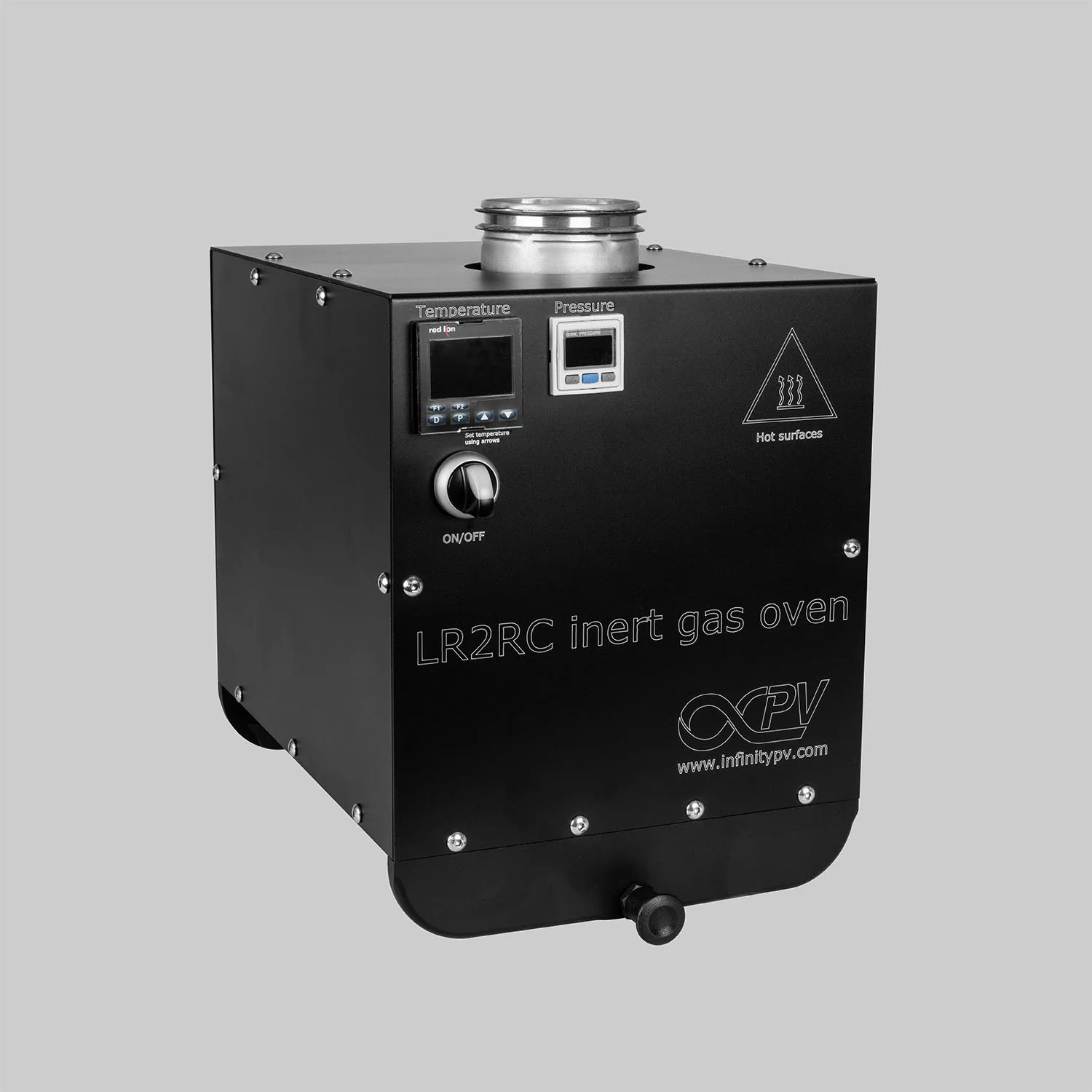

Inert Gas Oven
This is the most popular oven unit as it allows for efficient drying of most of the processed thin films where the drying process involves evaporation of a solvent carrier. This can be done using either compressed air or inert gas. The desired drying temperature is quickly reached and can easily be adjusted using the integrated PID controller.
| Drying | Hot Air or Inert Gas |
|---|---|
| Temperature Range | Up to 140 °C |
| Power | 1000 W |
| Temperature Control | PID Controller |
| Gas Pressure | < 6 bar |
| Gas Flow | 120 l/min |
| Dimensions (WxDxH) | 24 cm x 35 cm x 33 cm |
| Drying Length | 19 cm |
| Weight | 8 kg |

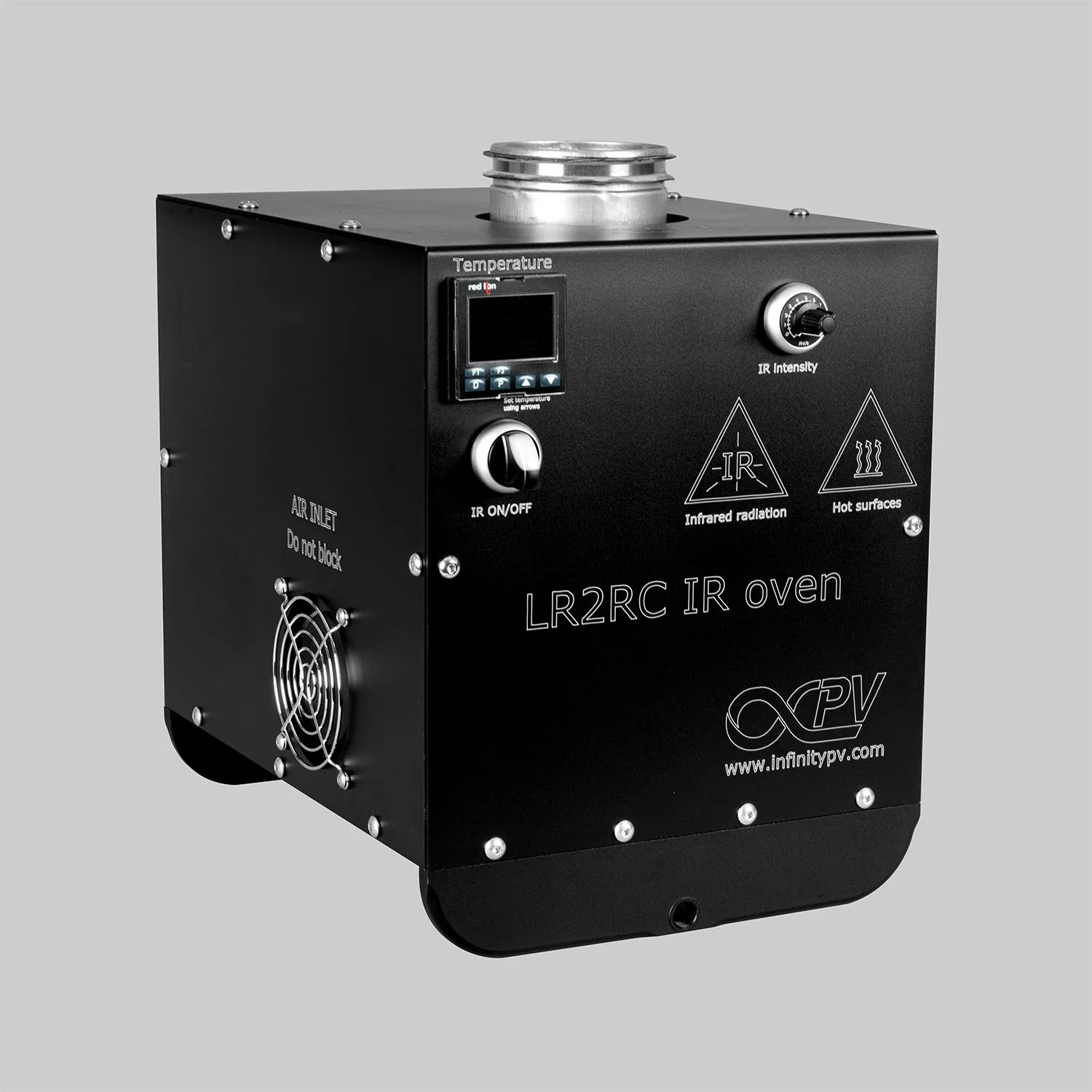

Infrared Oven

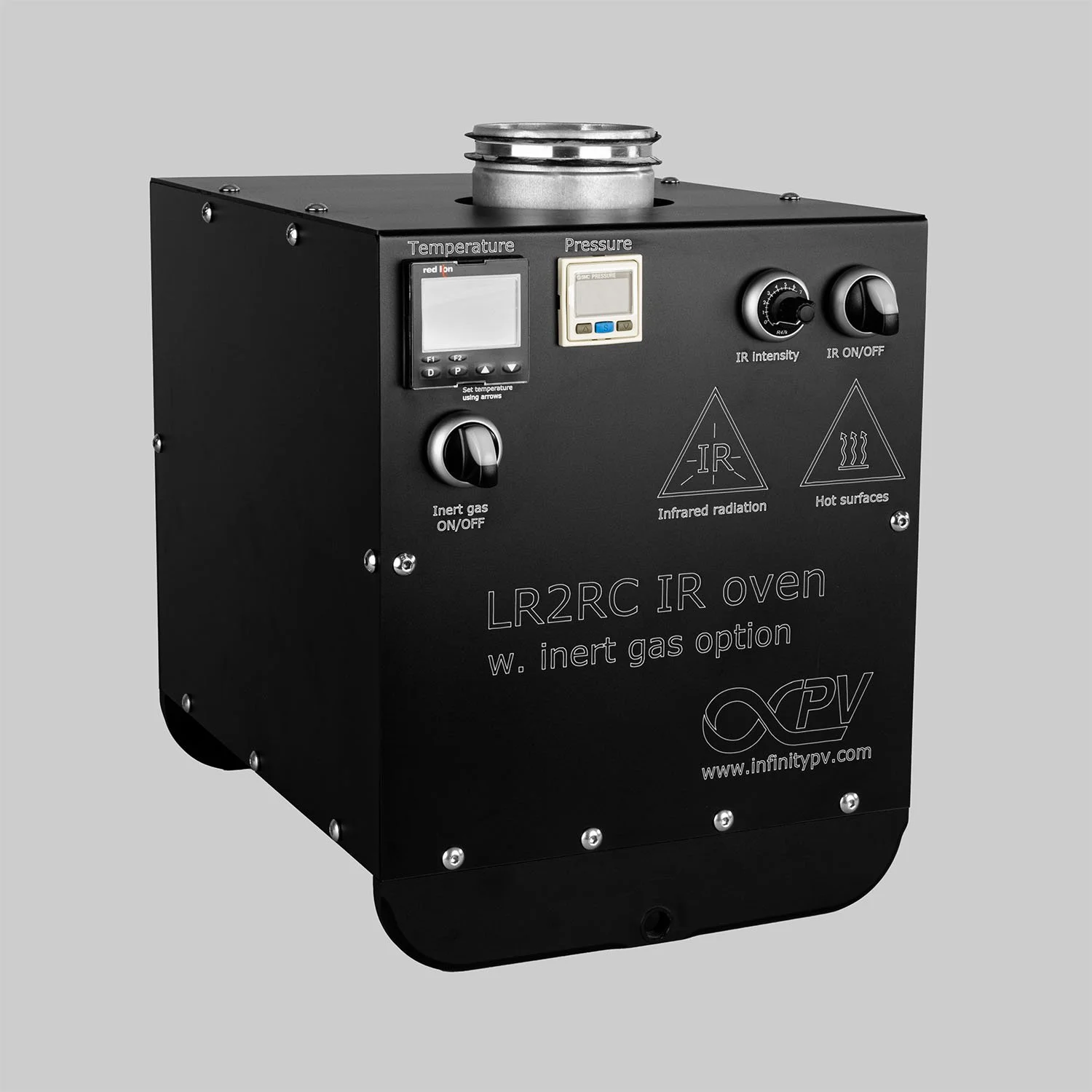

This powerful heat source works by directly transferring heat to the material rather than heating the air around it. The IR oven unit works with two 500-Watt IR light sources that can easily be exchanged for a more enhanced drying. We offer 3 different IR light sources for this system: Clear, Ruby and Gold. The IR intensity is adjusted using a potentiometer and the air temperature is displayed on the front of the oven unit. The 1kW IR oven also comes with an option for inert gas that enables IR drying under inert conditions.
| Drying/Curing | Infrared Light |
|---|---|
| Power | 1000 W |
| Power Control | Potentiometer |
| Gas Pressure (Only for Inert Gas) | < 6 bar |
| Drying Length | 190 mm |
| Dimensions | 240 mm x 350 mm x 330 mm |
| Weight | 8 kg |

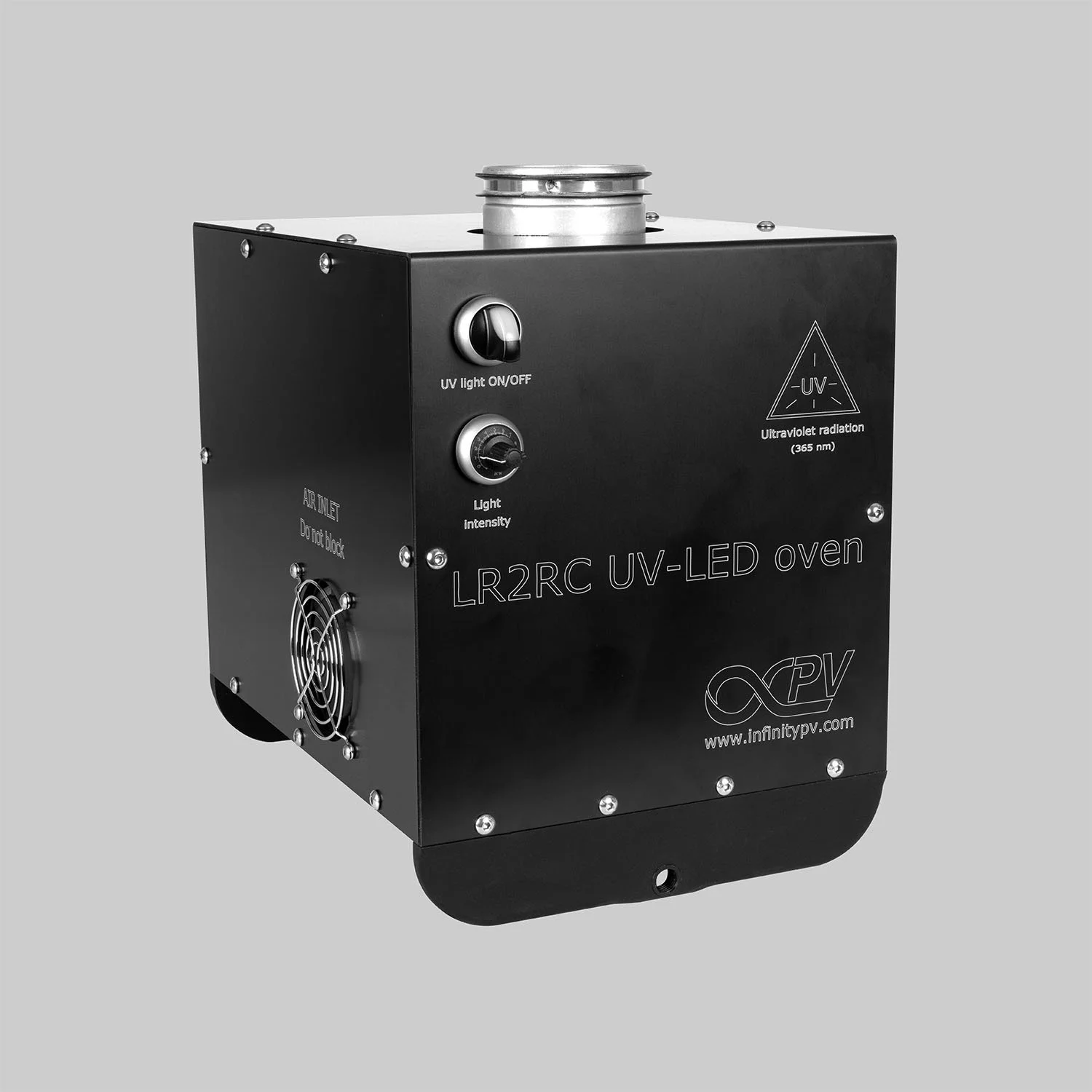

UV-LED Oven
The UV-LED oven unit is equipped with LED light sources which allow for quick curing (photopolymerization) in many different applications such as adhesives and coatings. The standard configuration employs 365 nm wavelength, but it is possible to have customized wavelengths installed. The intensity of the LED light is adjusted using the potentiometer placed on the front of the oven unit. The UV-LED oven also comes with an option for inert gas that enables UV curing under inert conditions.
| Drying/Curing | UV-Light LED |
|---|---|
| Power | Depending on Wave |
| Power Control | Potentiometer |
| Gas Pressure (Only for Inert Gas) | < 6 bar |
| Drying Length | 190 mm |
| Dimensions | 240 mm x 350 mm x 330 mm |
| Weight | 8 kg |
Combo Oven: Hot-Air - Inert Gas / IRs
This oven combines the best of heating technologies. With the ability to utilize hot-air - inert gas, and infrared (IR) heating, this oven is perfect when extra high drying versatility is needed, especially for our compact units (LR2RC500) where additional ovens cannot be added.
| Drying/Curing | UV-Light LED |
|---|---|
| Power | Depending on Wave |
| Power Control | Potentiometer |
| Gas Pressure (Only for Inert Gas) | < 6 bar |
| Drying Length | 190 mm |
| Dimensions | 240 mm x 350 mm x 330 mm |
| Weight | 8 kg |

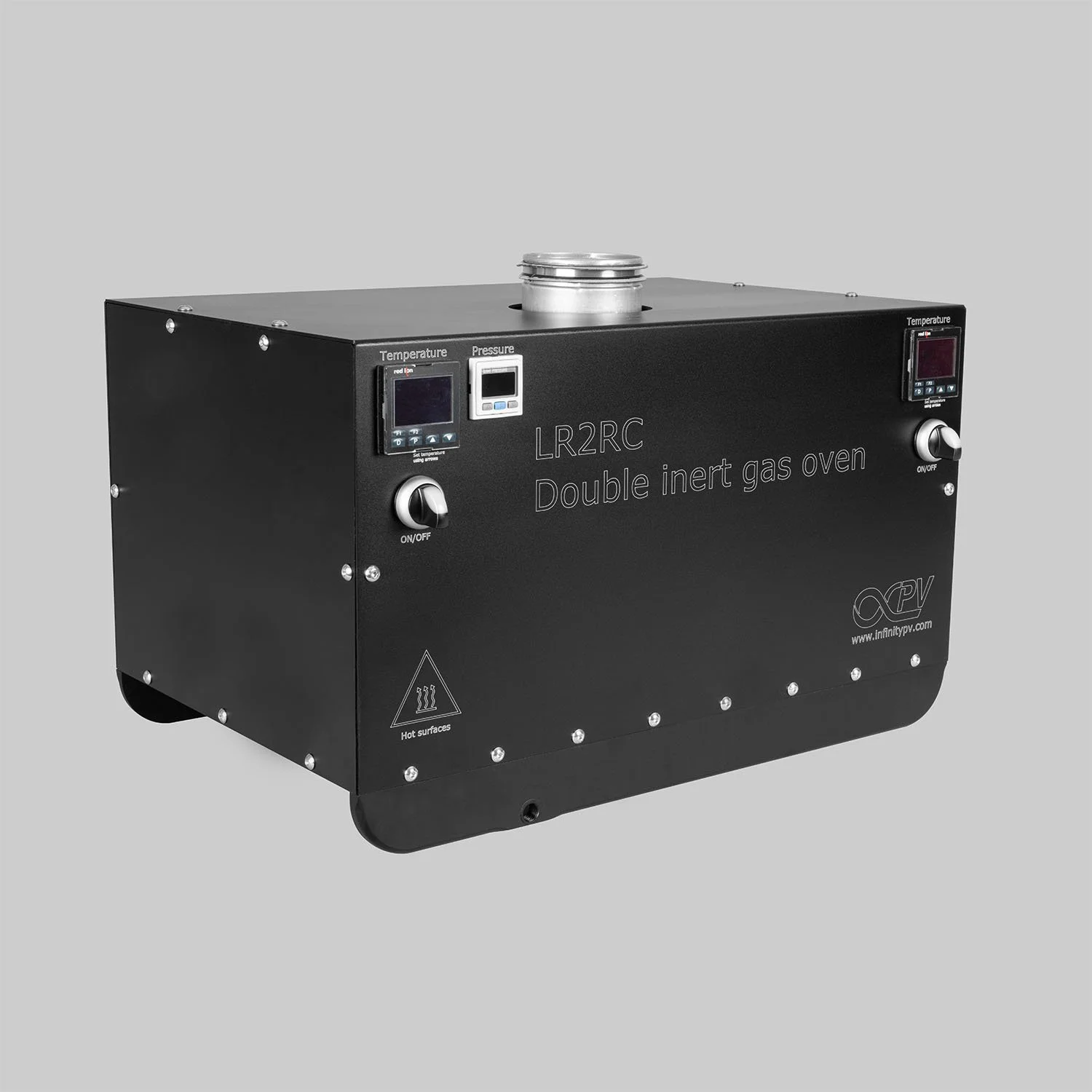

Double Inert Gas Oven
Double the length and with more than double the drying power. One of the key features of the double inert gas oven is its ability to provide dual-zone temperature control. The oven’s dual-zone capabilities enable precise control over temperature gradients which is crucial for processes that demand critical temperature ranges for optimal results. Operators can easily fine-tune the temperature for each zone, ensuring reliable and consistent outcomes.
| Drying | Hot Air or Inert Gas |
|---|---|
| Temperature Range | Up to 180 °C |
| Temperature Controller | PID Controller (2 Zones) |
| Gas Pressure | < 6 bar |
| Gas Flow | 200 l/min |
| Drying Length | 430 mm |
| Nominal Power Consumption | 20000 W |
| Dimensions (WxDxH) in mm | 490 x 350 x 330 mm |
| Weight | 15 kg |
Download Brochure
Explore the capabilities of the Laboratory Roll-to-Roll Coater by downloading our detailed brochure. This document provides an in-depth overview of the coater’s customizable features, technical specifications, and broad range of applications. Discover how our advanced technology can enhance your research and production processes.
Probably the World’s Most Compact R2R Slot-die Coater
The LR2RC500 Bundle is a compact, fully integrated roll-to-roll coating platform for laboratories, complete with an advanced mounting system, anodized rollers, a jumbo syringe pump, a 65 mm stainless slot-die head and an infrared oven system—delivering unmatched precision and scalability.
Video: What is the Laboratory Roll-to-Roll Coater?
The Laboratory Roll-to-Roll Coater is a compact, high-precision lab coater that transforms the way thin functional films are processed. It offers modular customization to fit different needs, scalable efficiency for small-scale production, and a user-friendly design with easy-to-remove components. Ideal for applications like batteries, fuel cells, and solar cells, it allows you to customize a system that’s perfect for your needs.
