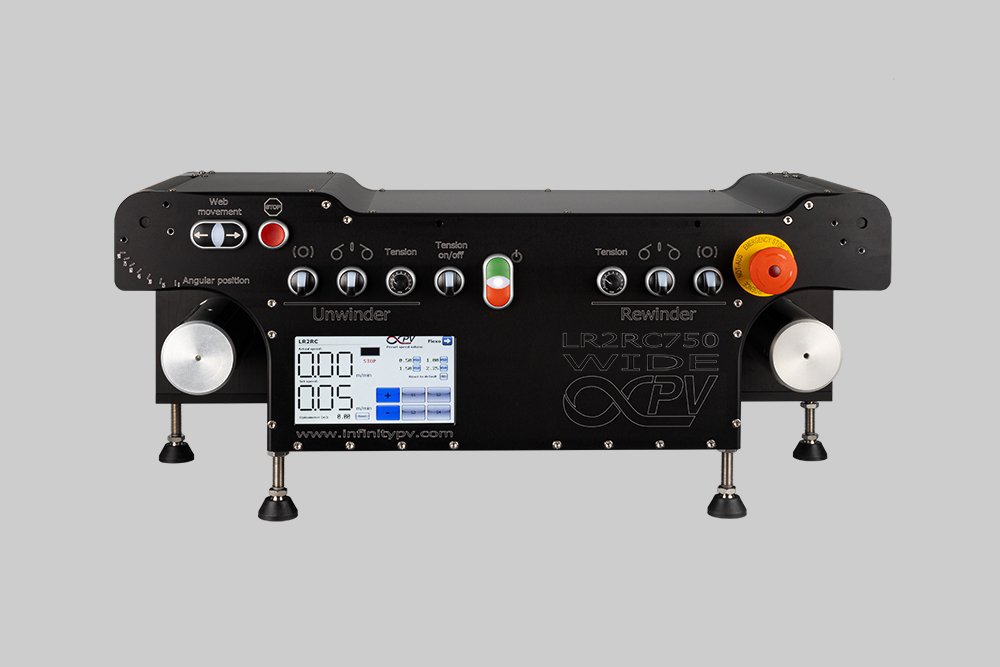

LR2RC750 Wide Platform
Finding the ideal balance between size and functionality, the LR2RC750 seamlessly accommodates additional features while remaining a perfect fit for fume hoods or gloveboxes.
Finding the ideal balance between size and functionality, the LR2RC750 seamlessly accommodates additional features while remaining a perfect fit for fume hoods or gloveboxes.
Finding the ideal balance between size and functionality, the LR2RC750 seamlessly accommodates additional features while remaining a perfect fit for fume hoods or gloveboxes.
The Laboratory Roll-to-Roll Coater (LR2RC) revolutionizes the processing of thin functional films with its compact, high-precision design. Ideal for both lab research and small-scale pilot production, this versatile system efficiently processes hundreds of meters of foil. Its modular structure allows for extensive customization, including the choice of unit size and components like slot-die heads, slurry coaters, flexographic printers, syringe pumps, gear pumps, drying systems, and roll-to-roll laminators. Designed for seamless integration into existing lab setups, it bridges the gap between research and production, making it perfect for applications such as batteries, fuel cells, printed solar cells, and sensors. With user-friendly features and adherence to international safety standards, the Laboratory Roll-to-Roll Coater offers a reliable, scalable, and efficient solution for a wide range of industries. Ready to build your Own Laboratory Roll-to-Roll Coater? Start the customizer here.
Technical Specifications
Web Speed 0.05-2.8 m/min
Working Width Up 310 mm
Touch Screen
Fits 2 Oven Systems
Buttons for Unit Operation (Option for Full Software Control)
Simple Computer Logging (Options Available)
Web Tension Control
Advanced Unwinder/Rewinder Mode
Spindels - Automatic Compressed Air for 3-Inch Core
Rollers in Anodized Aluminum (Options Available)
Operates from 3 Phases (400 VAC)
Dimensions: 750 mm x 460 mm x 300 mm | 50 kg
Key Features
Compact Size: Fits in laboratories, gloveboxes, or fume hoods without additional infrastructure.
Customizable: Choose from a variety of lengths and widths, with numerous accessories available.
Easy and Fast Exchangeable Modular Components: Includes printing and coating units, drying and curing systems, foil pretreatment, laminators, trimming knives, and more.
Modular Drying/Curing System: Accommodates various drying and curing methods.
Software Control Option: Advanced control options for precision and repeatability.
Web Tension Control: Ensures consistent quality across runs.
CE Certified - CSA/UL Compliant: Meets international safety standards.
Applications
Printed Solar Cells (OPV, Perovskite, DSSC, Tandem)
Adhesives and Sealants
Medical Devices (Biocompatible and Drug-eluting Layers)
Packaging Materials
All Laboratory Roll-to-Roll Coater Platforms
Coating and Printing Components
Video: What is the Laboratory Roll-to-Roll Coater?
