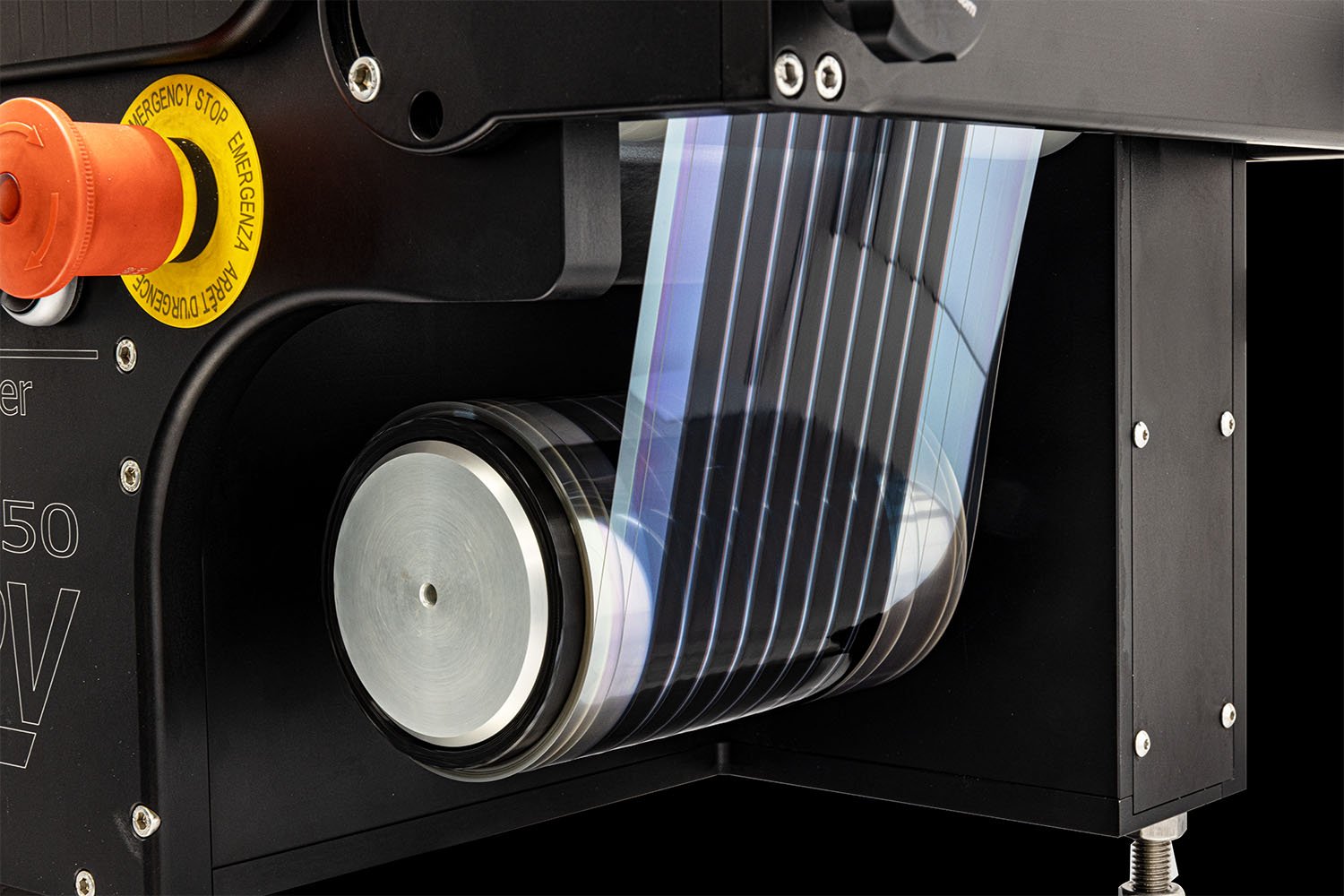

LR2RC750 Solar Coater
The LR2RC750 Coater is a complete system that facilitates the coating of all layers within the solar cell device stack, as well as the encapsulation of solar cells using various lamination options.
The LR2RC750 Coater is a complete system that facilitates the coating of all layers within the solar cell device stack, as well as the encapsulation of solar cells using various lamination options.
The LR2RC750 Coater is a complete system that facilitates the coating of all layers within the solar cell device stack, as well as the encapsulation of solar cells using various lamination options.
Scaled Solar Cell Fabrication with the LR2RC750 Solar Coater

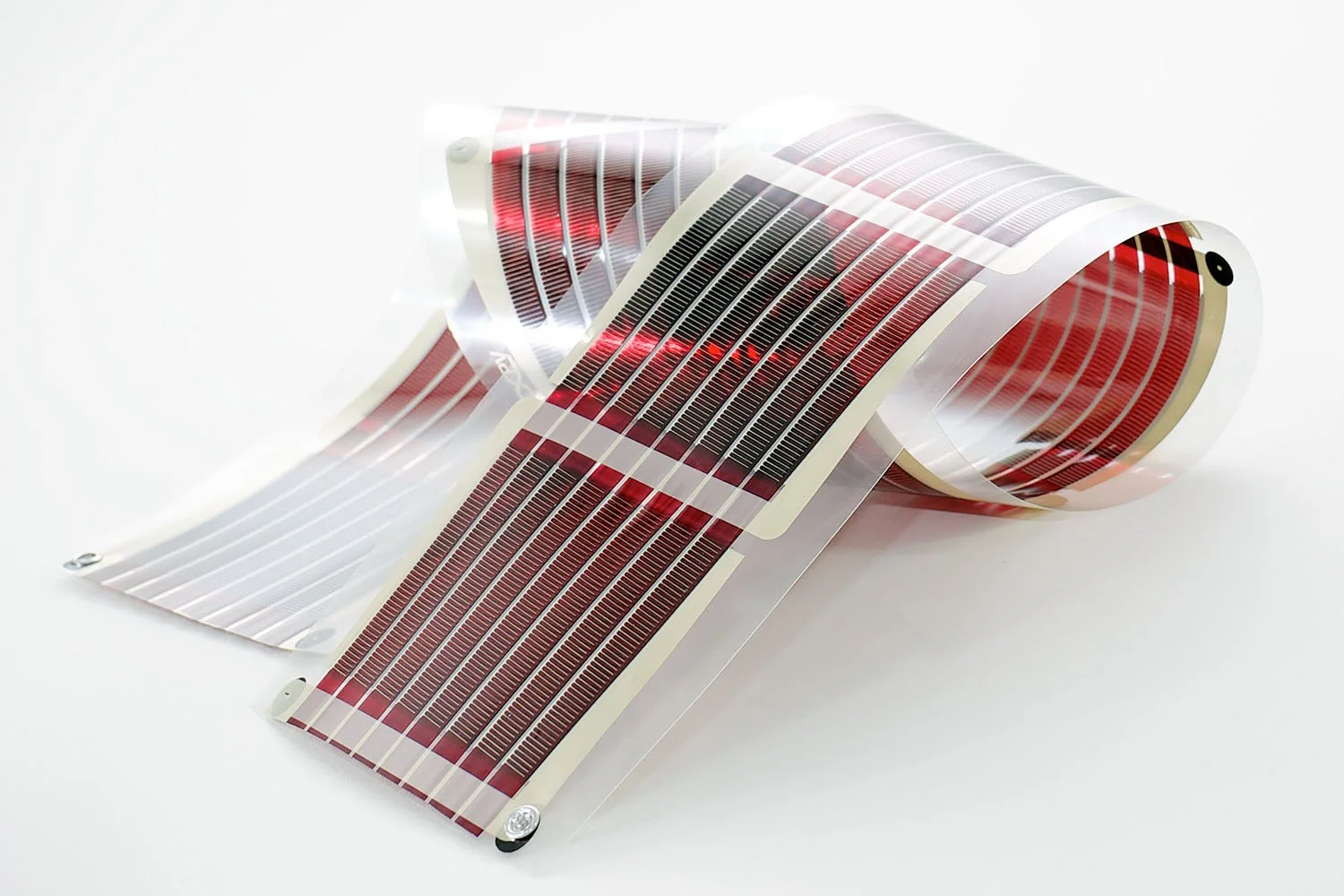

Are you new to roll-to-roll processing or looking to expand your processing capabilities? At infinityPV, we have carefully selected roll-to-roll components that enable the production of fully flexible and encapsulated solar cells. The LR2RC750 Solar Coater is compact in its design and fits directly into your laboratory while still providing the power needed to perform all tasks for solar cell production.
What’s Included:
LR2RC750 Platform: Featuring anodized aluminum rollers, web tension control, automatic 3-inch core spindles, touch screen interface, and easy-to-use operation buttons.
20 m of ITO/PET substrate on bobbin
Advanced Mounting System: Manual adjustment with digital micrometers units for two-point head to substrate distance readout.
Jumbo Syringe Pump: Provides precise and consistent ink delivery, ideal for research applications.
115 mm Stainless Slot-die Head (100 mm Working Width) incl. Shim Kit
Fitting Kits: Low and High viscosity versions included.
Air Knife Pro: Provides versatile drying and quenching for thin films.
Roll-to-Roll Flexographic Printer: Specially designed for scaled R2R printing
Roll-to-Roll Laminator: Encapsulation becomes possible and readily scalable in R2R processing.
UV-LED oven: LED light sources for fast and efficient curing of adhesives for laminations and encapsulations.
Inert Gas Oven: For effective drying and curing at a lab scale, enabling quick setup and adjustments to meet your specific needs.
Adjustable Nip Roller: Tailor your setup for various substrate handling requirements.
Key Features
Compact Size: Fits in laboratories, gloveboxes, or fume hoods without additional infrastructure.
Customizable: Choose from a variety of lengths and widths, with numerous components available.
Easy and Fast Exchangeable Modular Components: Includes printing and coating units, drying and curing systems, foil pretreatment, laminators, trimming knives, and more.
Modular Drying/Curing System: Accommodates various drying and curing methods.
Software Control Option: Advanced control options for precision and repeatability.
Web Tension Control: Ensures consistent quality across runs.
CE Certified - CSA/UL Compliant: Meets international safety standards.
Technical Specifications
Operating Power: Single phase (240VAC)
Drying/Curing Length: 49 cm
Web Width: Up to 200 mm
Web Speed: 0.05-2.8 m/min (forward and reverse).
Why Choose the LR2RC750 Solar Coater?
Compact and Scalable: Perfect for small laboratory spaces, gloveboxes, or fume hoods without needing additional infrastructure.
Integrated Solution: Includes essential components for R2R slot-die coating, streamlining your workflow from research to pilot-scale production.
Enhanced Control and Efficiency: Achieve higher throughput, improved material utilization, and unparalleled control over your coating processes.
Customizable and Modular: With modular components, the LR2RC750 Platform can be easily adapted to fit your specific requirements, making it the ideal platform for diverse applications such as batteries, printed solar cells, LEDs, sensors, and more.
