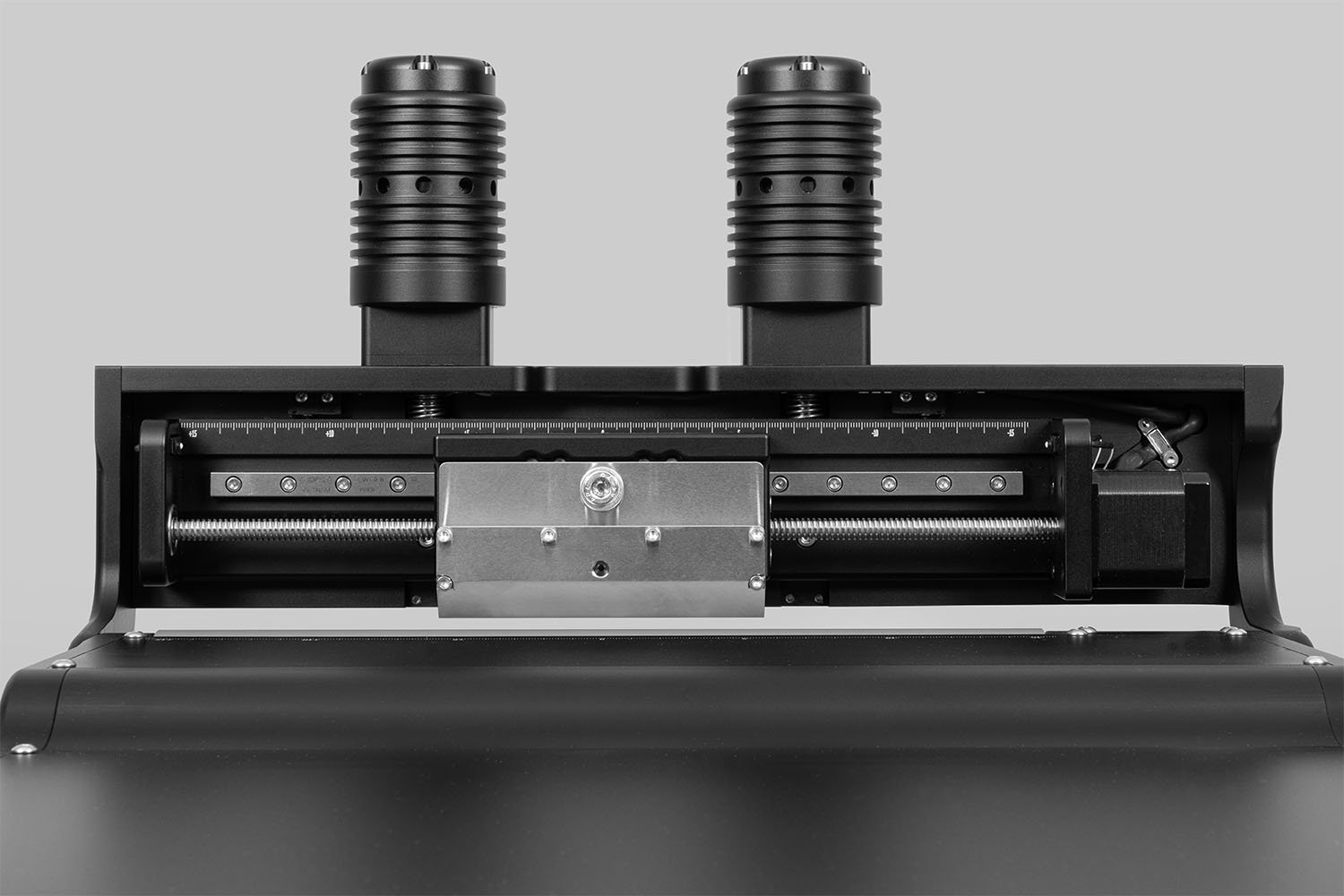

Slot-die Head - 115 mm (100 mm Coating Width)

Experience Superior Coating Performance with Our Precision-Engineered Slot-Die Heads

Our precision-engineered slot-die heads are designed to deliver exceptional coating performance across a range of materials and sizes. Available in PEEK, Stainless Steel (316/316L), and Titanium, these heads come in standard widths of 40 mm, 65 mm, 115 mm, 165 mm, 195 mm, and 305 mm, making them ideal for applications from intricate thin films to large surface coatings. Perfect for thin film batteries, fuel cells, printed solar cells, OLEDs, sensors, adhesives, and other thin-film technologies, our slot-die heads accommodate diverse materials and processes with precision.

Versatile Design for Laboratory to Industrial Applications

Engineered for versatility, our slot-die heads feature optimized dead volumes, suitable for laboratory, pilot, and industrial-scale applications. Whether you're working with microliters or milliliters, our slot-die heads provide consistent and reliable performance across a variety of coating scenarios.

Practical and User-Friendly

Our slot-die heads are designed with practicality in mind, featuring a streamlined construction with only two parts. This design simplifies assembly, disassembly, and cleaning, enhancing efficiency and reducing downtime. Whether you're operating with low-pressure, low-viscosity inks or require rapid positioning on automated coating platforms, our lightweight PEEK heads offer ease of use without sacrificing precision.

Comprehensive Stock and Custom Solutions

We prioritize accessibility and convenience by maintaining a comprehensive stock of standard heads, shim kits and fitting kits for quick availability. For projects with unique specifications, our team also specializes in crafting custom heads and custom shims providing tailored solutions to meet your specific coating requirements.

Trust in infinityPV for Reliable and Precise Coatings

Choose infinityPV slot-die heads for reliable, high-quality coatings across diverse applications. Our heads are essential tools for achieving precise and efficient coatings in modern thin-film manufacturing. Explore our range and experience the difference in performance and reliability.

Sizes:

• 40 mm (10/13 mm Coating Width)

• 65 mm (50 mm Coating Width)

• 115 mm (100 mm Coating Width)

• 165 mm (150 mm Coating Width)

• 195 mm (180 mm Coating Width)

• 305 mm (280 mm Coating Width)

• Customized Slot-Die Heads

Materials:

• PEEK

• Stainless Steel

• Titanium

Heated Slot-die Heads

• 50 mm (10 mm Coating Width)

• 65 mm (50 mm Coating Width)

• 115 mm (100 mm Coating Width)

• 165 mm (150 mm Coating Width)

Accessories:

• Heated Slot-die Head Controller Unit

• Standard Shim Kits

• Customized Shim Kits

• Low Viscosity Fitting Kits

• High Viscosity Fitting Kits

Fits All Our Slot-die Coaters

• Laboratory Roll-to-Roll Coater

• Research Laboratory Coater

Applications

• Batteries

• Fuel Cells

• Printed Solar Cells (OPV, Perovskite, DSSC, Tandem)

• Adhesives and Sealants

• Medical Devices (Biocompatible and Drug-eluting Layers)

• Packaging Materials

Video: Probably the World’s Most Compact Roll-to-Roll Slot-die Coater
