Game-Changer for Slot-Die Coating: New Model Predicts Lithium Battery Electrode Thickness with 98.75% Accuracy
A Comprehensive Model to Improve Battery Manufacturing Efficiency
A new study introduces a refined and experimentally validated model for predicting the coating thickness of negative electrodes in lithium batteries during the slot-die coating process. The model, developed by researchers from Xi’an University of Technology and KATOP Automation Co., significantly improves upon existing approaches by accounting for the complex interactions between temperature, slurry characteristics, and process variables. Slot-die coating, a widely adopted technique in lithium-ion battery production, relies on precise control of parameters such as coating speed, fluid flow, and slurry composition to ensure uniform electrode thickness—an essential factor for battery performance and reliability.
The proposed model integrates classical fluid dynamics theory, including the Landau–Levich and Ruschak models, with practical adjustments to reflect industrial conditions. It predicts coating thickness with a remarkable 98.75% accuracy, as verified through a combination of fluid dynamic simulation and laboratory experiments. The study also demonstrates the influence of environmental temperature and slurry behavior—factors often overlooked in earlier models—on final coating thickness. The results provide a robust framework for improving yield, consistency, and performance in battery electrode manufacturing, while reducing costly trial-and-error during production setup.
The Laboratory Roll-to-Roll Coater is the ideal coating machine for scaling up to roll-to-roll processing of battery electrode materials or for testing and optimizing battery electrode slurries.
Slot-Die Coating and the Challenge of Uniform Electrode Thickness
In the manufacturing of lithium-ion batteries, the quality and uniformity of the negative electrode coating play a critical role in determining the battery’s capacity, cycle life, and energy efficiency. Slot-die coating is a preferred method due to its precision and ability to apply uniform films at high speed. However, real-world manufacturing conditions—ranging from environmental factors to variations in slurry composition—can introduce inconsistencies in the thickness of the applied electrode layer.
Inconsistencies in coating can lead to localized defects such as thicker or thinner regions, which degrade the battery’s electrochemical performance. A thicker coating may increase internal resistance and reduce power density, while a thinner layer may result in insufficient active material, thereby decreasing energy storage capacity. Manufacturers are therefore under pressure to precisely control and predict coating thickness to avoid quality issues and reduce production waste.
Previous attempts to model coating thickness have often been limited in scope, focusing on only a few variables or ignoring key interactions. This new study addresses those limitations by proposing a predictive model that integrates fluid dynamics theory with temperature effects, slurry spreading behavior, and drying factors to provide a complete and practical solution.
Key Components and Theoretical Foundations of the Model
The model is grounded in two core fluid mechanics frameworks: the Landau–Levich thin-film theory, which describes how film thickness forms as a substrate moves through a fluid, and the Ruschak model, which introduces pressure balance considerations based on capillary forces. These provide the starting point for calculating the minimum achievable film thickness under ideal conditions.
To reflect real-world complexities, the model incorporates additional parameters, including:
Temperature-induced changes in slurry density, which affect mass conservation during coating.
Slurry spreading characteristics, such as particle size and viscosity, which impact how evenly the fluid distributes across the substrate.

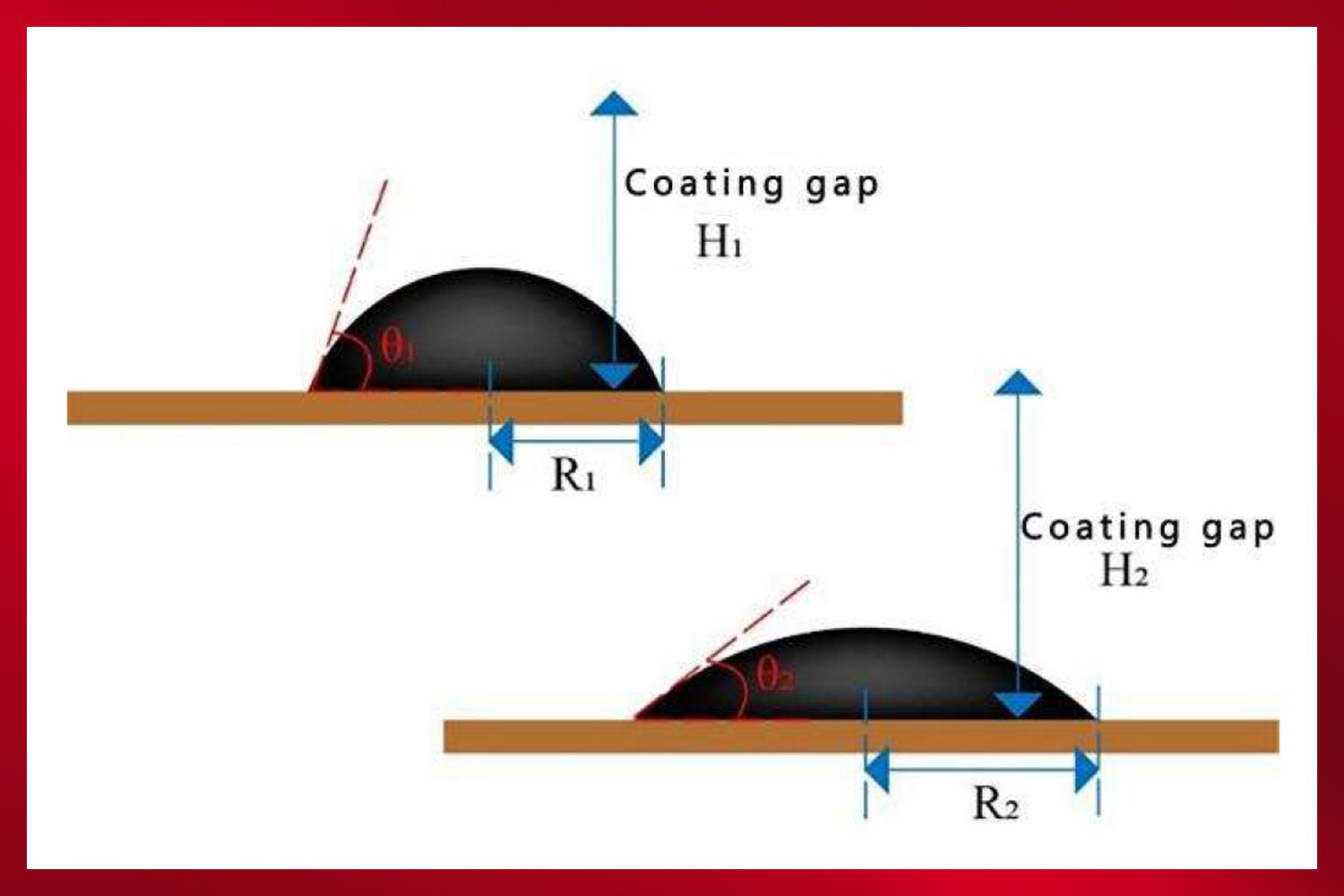

Contact angle modeling, combining Young–Laplace and Wenzel models to describe fluid wetting behavior on copper foil substrates under dynamic conditions.
Drying behavior, through the inclusion of solution mass fraction and an error correction coefficient to predict the final dry thickness.
The mathematical system progresses from the fluid's entry velocity at the coating head, through its spread and interaction with the substrate, to the final dried coating measurement. This comprehensive approach enables accurate forecasting of thickness outcomes across a range of industrial process settings.
The Slot-die Coater is an excellent choice for researchers focused on developing and optimizing battery electrode slurries at the laboratory scale.
Simulation and Experimental Validation
The accuracy of the model was evaluated through both computational simulations and physical experiments. The simulations used the Volume of Fluid (VOF) method to replicate the interaction between slurry and air as the fluid spreads and forms a layer on the substrate. This method allows for detailed modeling of multiphase fluid behavior, incorporating the effects of gravity, surface tension, and capillary forces on the final film formation.
Three different sets of process parameters were used to test the model's reliability under varied conditions. These included adjustments to coating speed, coating gap, and lip dimensions of the slot-die head. The theoretical thickness values predicted by the model were then compared to values obtained from VOF simulations and real-world coating experiments.
Summary of results:
Predicted thicknesses were within 1.25% of experimentally measured values.
Simulated thicknesses closely matched predicted values, with deviations under 2%.
Experimental results confirmed consistent thickness across samples, demonstrating the model’s reliability under operational conditions.
The study’s experimental phase involved preparing coated electrode sheets using industrial-grade equipment provided by KATOP Automation Co. and measuring thickness at 40 evenly distributed sampling points. These measurements confirmed the high degree of uniformity and accuracy achieved by applying the model.
The LR2RC750 Battery Coater is the ideal coating machine for scaling up to roll-to-roll processing of battery electrode materials or for testing and optimizing battery electrode slurries.
Implications for Industry and Future Applications
The ability to predict electrode coating thickness with high accuracy has far-reaching implications for lithium-ion battery manufacturing. By reducing reliance on iterative testing and manual calibration, the model can help manufacturers optimize process parameters more efficiently and reduce material waste. This is particularly important in an industry where minor improvements in consistency can translate to significant gains in battery performance and cost efficiency.
Key benefits and potential applications include:
Improved process planning: Enables precise configuration of slot-die coating systems before production begins.
Enhanced product quality: Reduces variation in electrode performance across production batches.
Reduced material costs: Minimizes over-coating or under-coating by establishing optimal parameters in advance.
Scalability: Can be adapted for different battery designs, electrode chemistries, and manufacturing environments.
Foundation for automation: Offers a strong base for integration with AI-based quality control systems and real-time process monitoring.
While the current model provides an accurate prediction within tested ranges, the authors note that extreme conditions, such as highly elevated temperatures or unusual coating speeds, may require additional calibration. They also suggest that future work could explore integrating machine learning to further refine the model based on large datasets gathered from production lines.
Conclusion
This study represents a significant step forward in predictive modeling for lithium battery electrode manufacturing. By integrating classical fluid mechanics with practical variables like temperature and slurry spreading behavior, the model achieves a level of predictive accuracy that surpasses earlier approaches. The thorough simulation and experimental validation underscore its robustness and real-world applicability.
As battery technology continues to evolve and demand grows for more efficient, higher-capacity energy storage systems, precision in manufacturing becomes increasingly vital. Tools like this predictive model will play an essential role in meeting those demands by enabling smarter, more efficient production systems.
